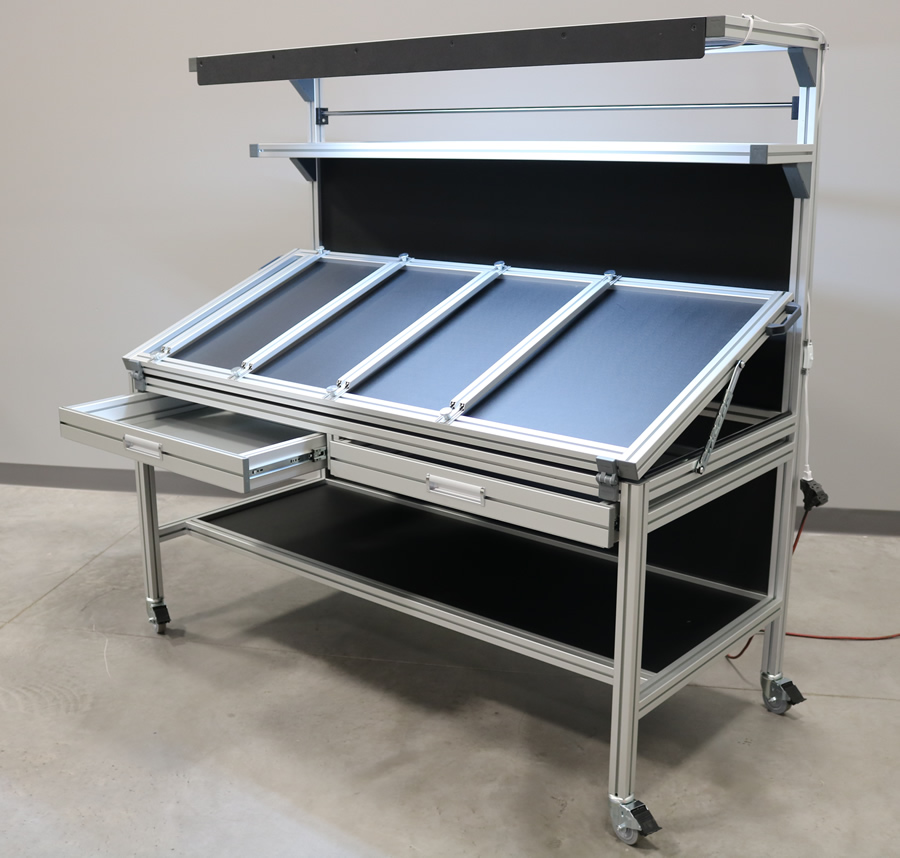

Electrical Panel Building Workstation With Tilting Top

Click thumbnail for larger image

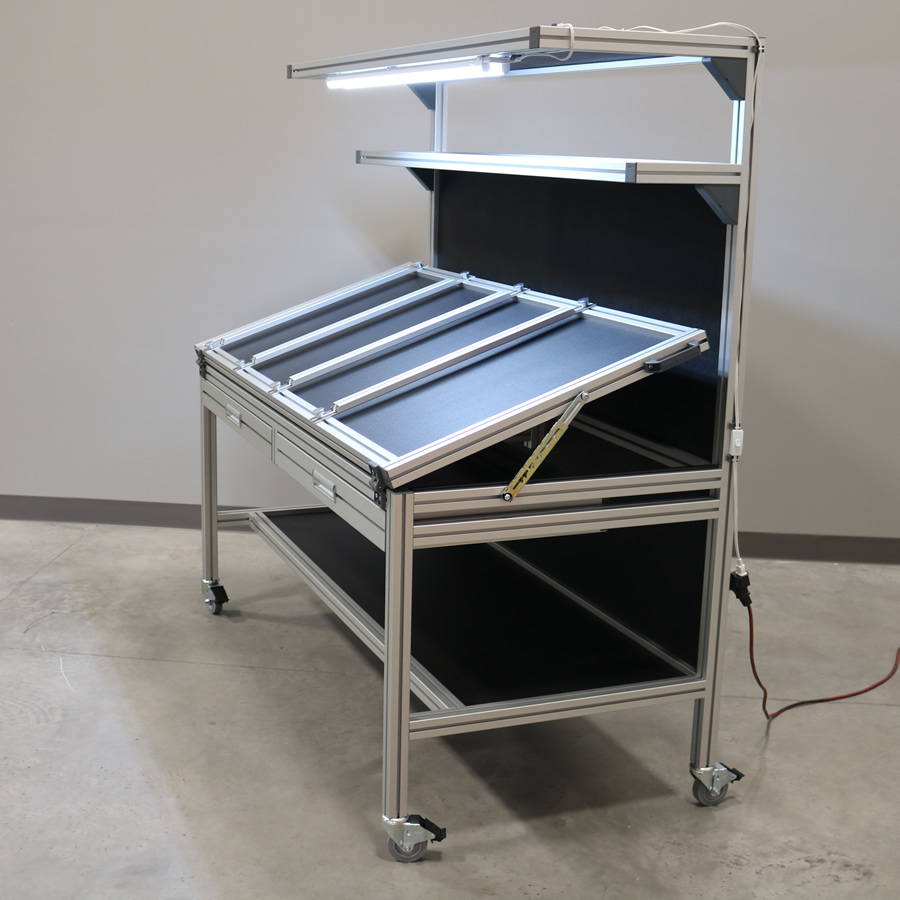

Adjust Tilting Work surfaceTo Avoid Leaning Over Panel

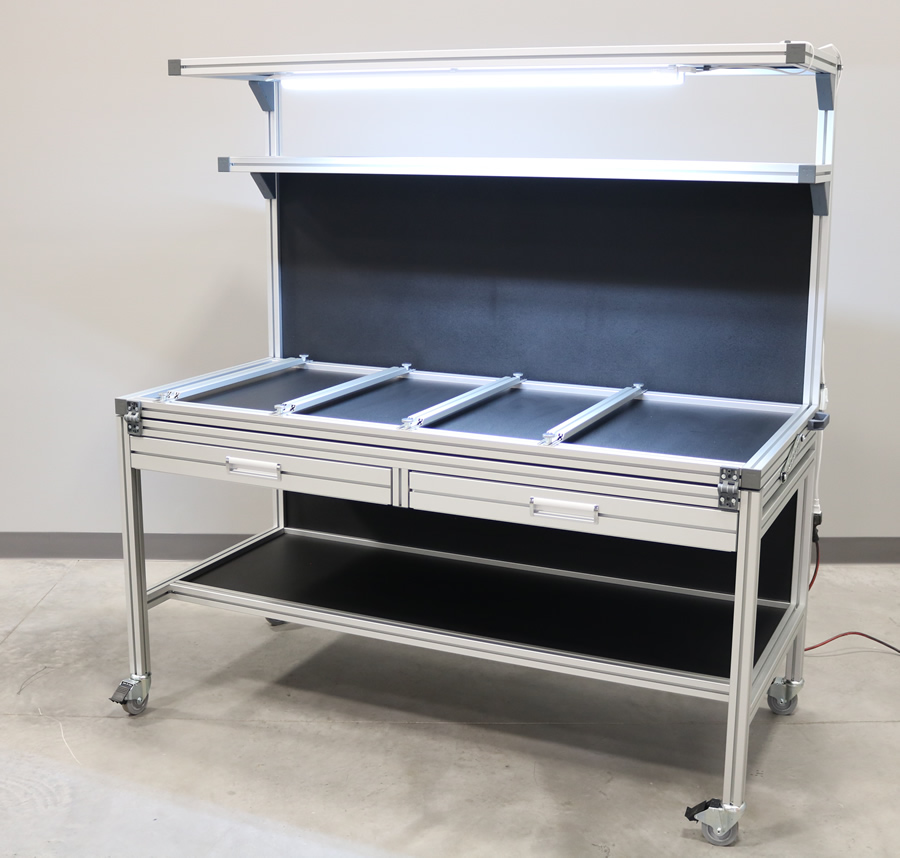

Mounting Bars Adjust Horizontally For Different Side Panel Boxes

Cam Stay Holds Top At 6 Different Angles

Bright Overhead LED Lights Ideal For Precision Work

Horizontally sliding panel mount bars accept square nuts in there t-slots allowing them to line up with the hole pattern for any panel box in the work envelope of the workstation.

E-mail the project number below & dimensions to sales@minitecframing.com for a quote today.

Project # AM011216-1 With Single Rod

Click here to download zipped step file for the single rod design

Project # AM020724-1 With Individual Rod Holders

Click here for the double row design with individual rod holders

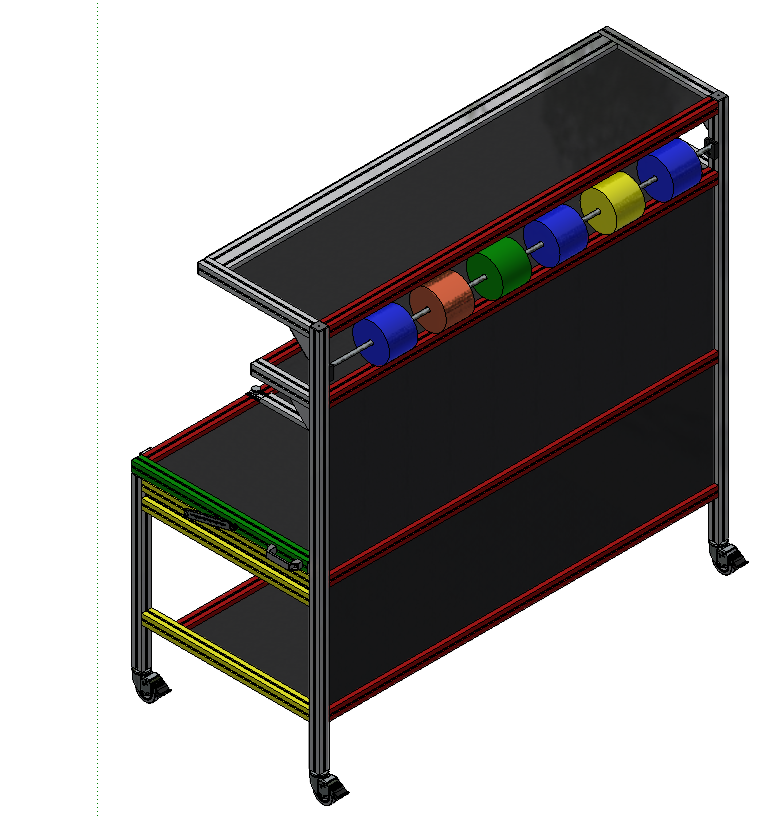

Back 16mm Bar For Holding Spools Of Wire

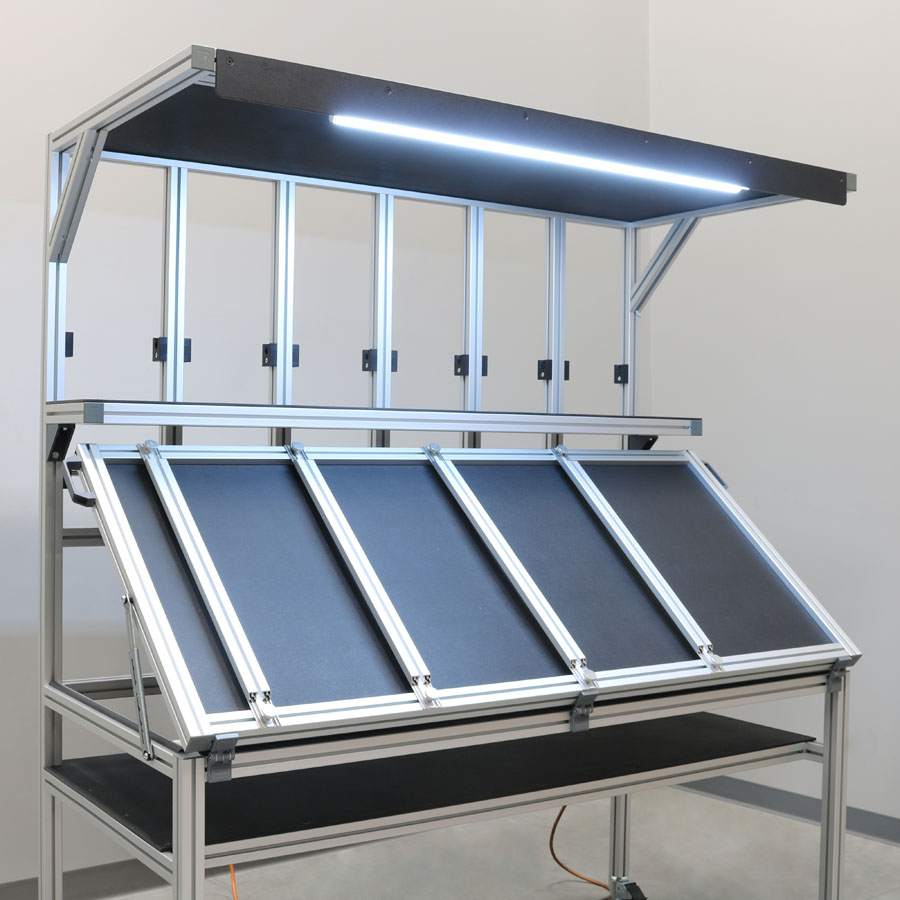

Design Below Has Individual Wire Spool Holders

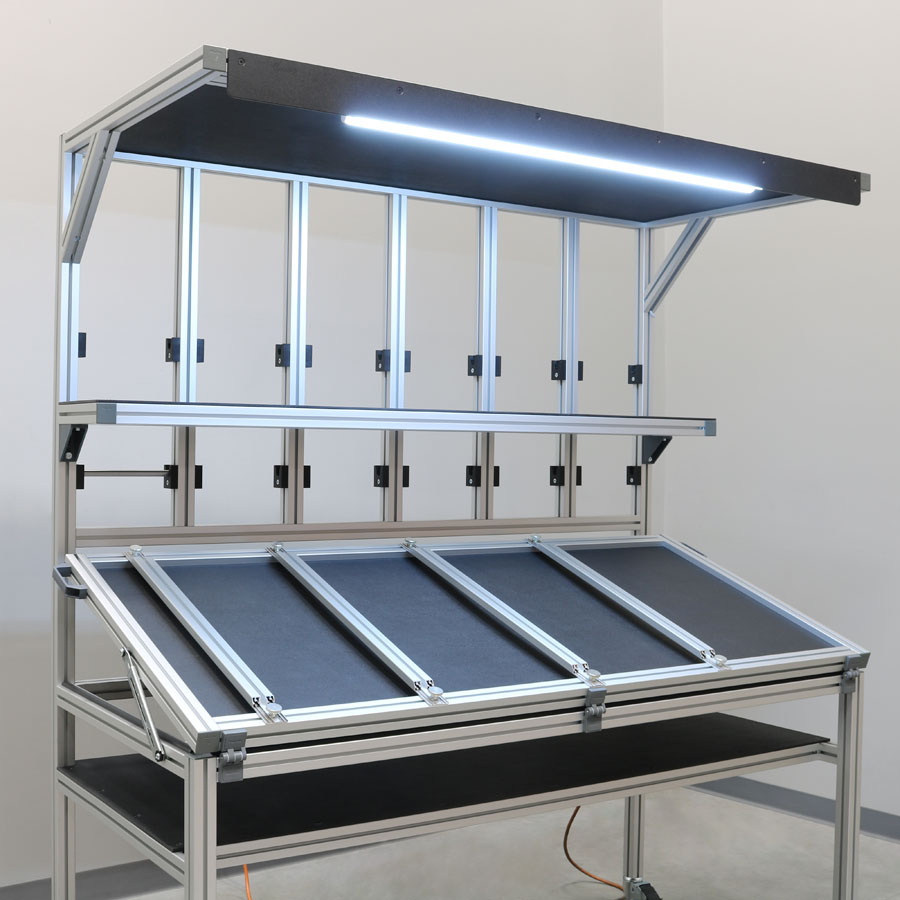

Two Rows Of Holders

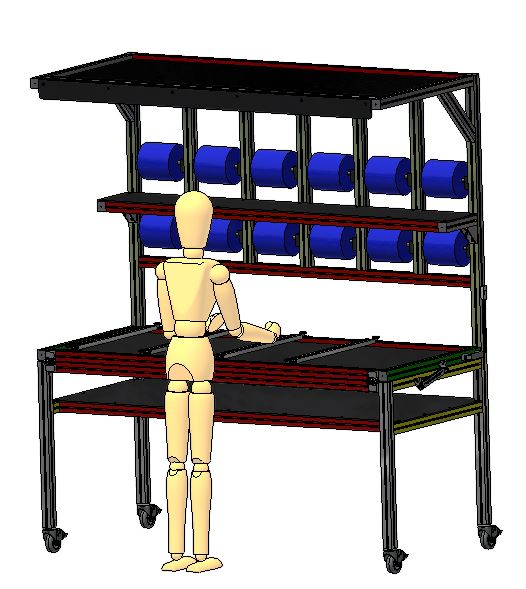

Individual Holders For Each Wire Spool Rod

Individual Spool Holders Make Changing Spools Faster
